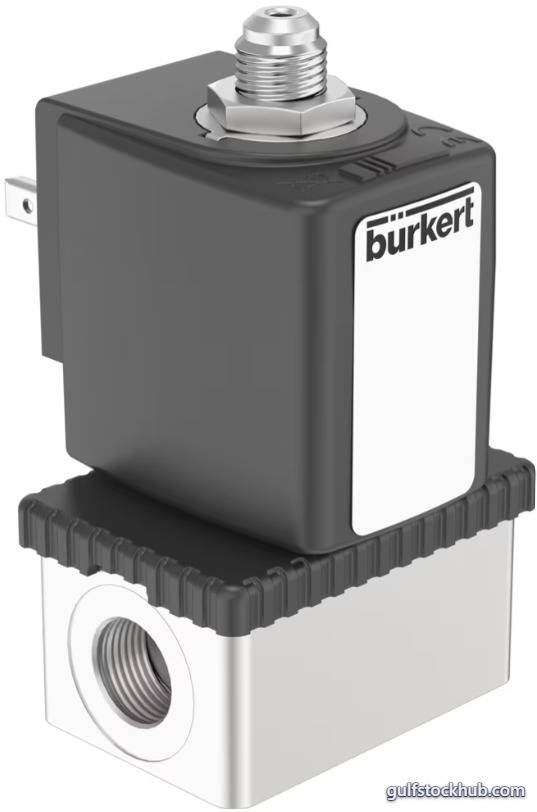

Burkert Type 6014 Direct-Acting 3/2-Way Plunger Solenoid Valve (ID: 00466588)

The Bürkert 00466588 is a compact, direct-acting 3/2-way normally closed (NC) plunger solenoid valve from the Type 6014 series. When energized, the valve opens to allow flow, and when de-energized, it closes the main path and routes the medium to a third exhaust port. Built with a heavy-duty brass body, a 1.5 mm internal orifice, and high-performance FKM (Viton) seals, it is well-suited for demanding applications involving neutral fluids, technical gases, or vacuum environments up to 100°C.Because it utilizes a direct-operating plunge mechanism rather than a diaphragm, it requires zero differential pressure to function reliably across a wide operating range of 0 to 16 bar. This specific part number features standard G 1/8" female threaded connections and comes equipped with an IP65-rated, high-temperature epoxy-encapsulated 230V AC (50/60Hz) coil.
