LST-00018

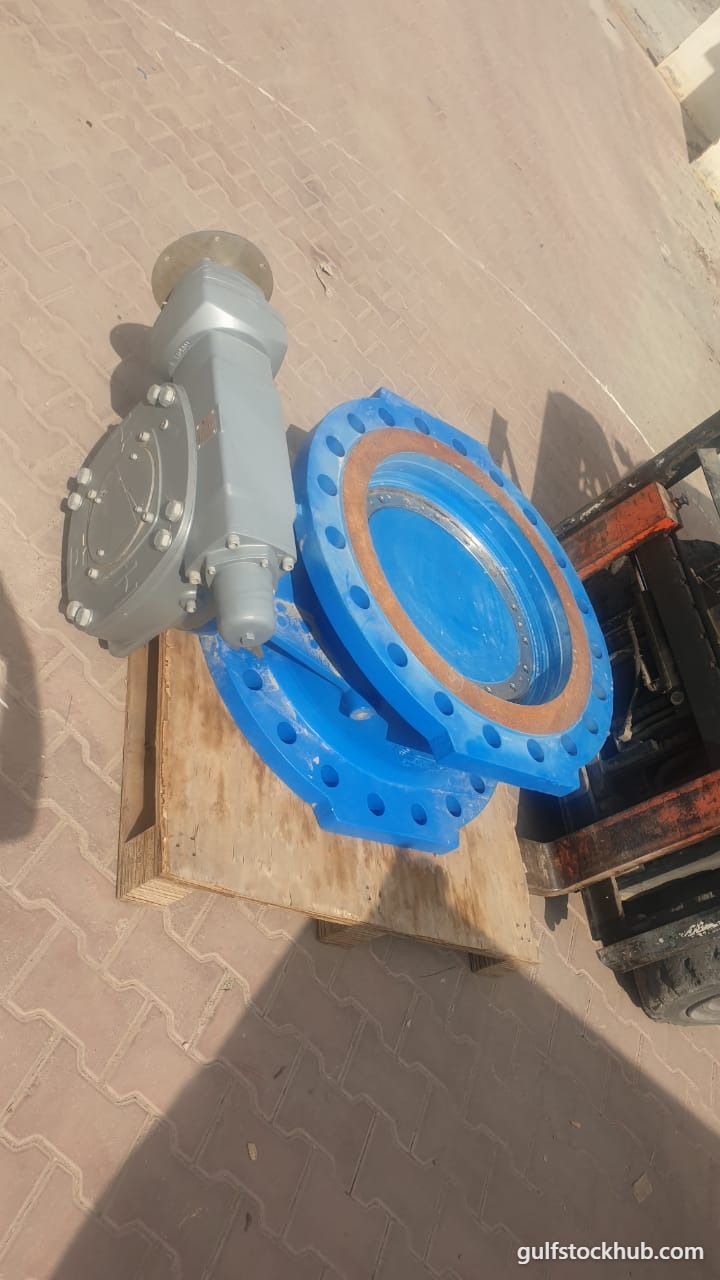

MIV Motor Operated Double Eccentric Butterfly Valve DN500, PN40
6,000.00OMRNegotiable
Item Details
Quantity4 units
Item ConditionNew
Item LocationMuscat, Oman
Trade Terms
Payment TermsCash on delivery
Lead TimeReady in Stock
Delivery TermsEXW (Ex Works)
Supplier Details
Technical Specifications
SizeDN500 (20")
BrandMIV
Material (MOC)Ductile Iron
ActuationElectric
TypeButterfly Valve
End ConnectionFlanged
Pressure RatingPN40
Documents
Description & Notes
- Valve type : Double Eccentric Double Flanged acc.to EN 593 - Body material : Ductile cast iron EN-GJS-400-15 (GGG 40) - Disc material : Ductile cast iron EN-GJS-400-15 (GGG 40) - Shaft material : Stainless Steel - Shaft sealing : EPDM O-rings - Seat ring : EPDM - Face to face length : According to EN558-1 Series 14 - Coating internal & external : FBE 300 mic. RAL 5015 - Body test pressure (Disc open) : 1.5 x working pressure acc. to EN12266 - Seat test pressure (Disc Closed) : 1.1 x working pressure acc. to EN12266 - Flange drilling : According to EN 1092-2 / DIN 2501 - Internal fasteners : Stainless Steel - Media : Potable Water - Operation : AUMA Electric Actuator (Open / Close type of duty)
